Precision Footwear Engineering & Quality Control
Located in Jinjiang—the Footwear Capital of China—Tianmao Footwear integrates in-house R&D, computerized cutting, precision twin-needle stitching, robotic lasting, and an 8-gate quality control stream featuring our patented dynamic waterproof testing rig.
How Does Tianmao Footwear Test Waterproof Hunting and Hiking Boots Against SATRA TM77 and ISO 20344 Standards?
Answer Capsule: Unlike factories testing only raw membranes, Tianmao tests finished boots using its patented dynamic underwater flexing rig (CNIPA Patent ZL201920812345.X). Compliant with SATRA TM77 and ISO 20344, every boot undergoes 0.03 MPa pneumatic checks and 25,000 to 50,000 continuous submersion flexes with zero ingress, exceeding SATRA TM4 sole adhesion benchmarks at ≥4.8 N/mm.

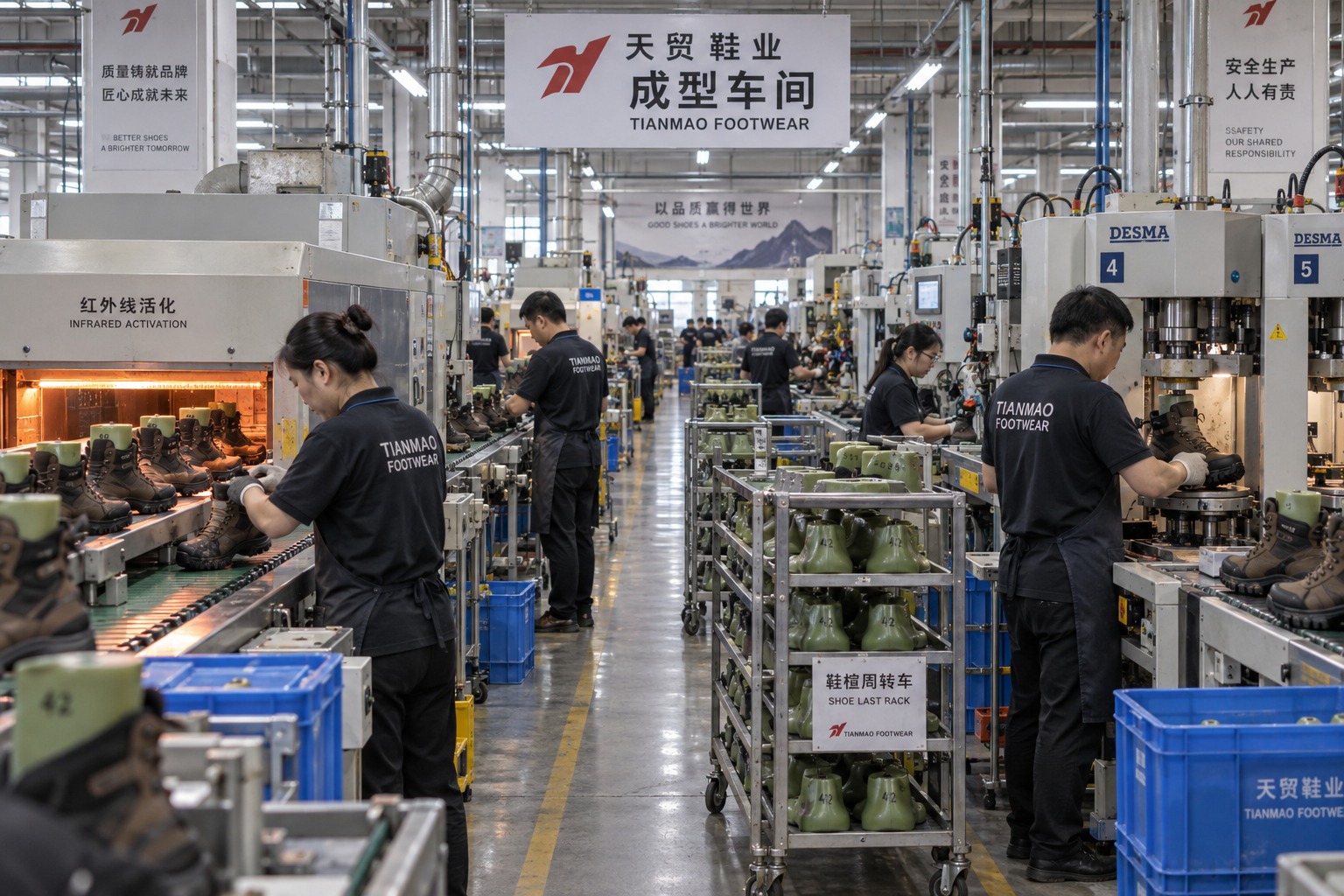

Our Jinjiang manufacturing campus houses 2 modern automated assembly lines with supporting prep lines, sample rooms, and physical testing laboratories.
Patented Dynamic Waterproof Footwear Testing Device

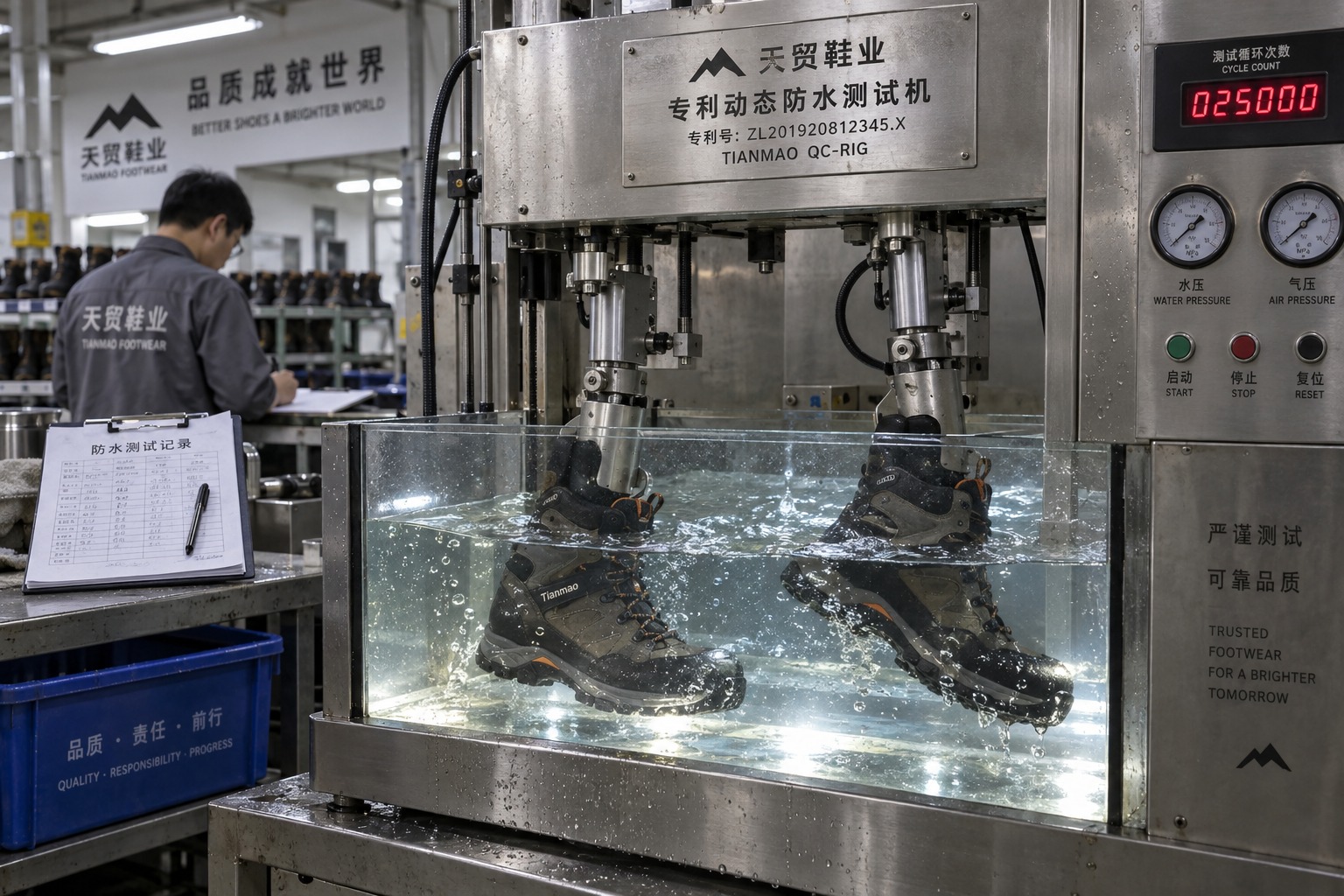

Unlike conventional factories that outsource or test only raw membranes, Tianmao operates in-house proprietary testing equipment (Authorized Patent ZL201920812345.X). Our automated rig flexes finished boots under water immersion to simulate real-world wading, detecting micro-leaks before lasting.
Key Testing Benchmark & Protocol:
- ✔ Testing Mode: 100% shoe water immersion dynamic flex cycling
- ✔ Flex Threshold: ≥ 25,000 continuous cycles without water ingress
- ✔ Air Pressure In-line Check: 0.03 MPa pneumatic pressure sensor
- ✔ Compliance: SATRA TM77 & ISO 20344 dynamic water resistance
In-House Physical Testing Capabilities
| Test Parameter | Standard Method | Tianmao Benchmark |
|---|---|---|
| Upper-to-Sole Adhesion | SATRA TM4 | ≥ 4.8 N/mm (Req. 4.0) |
| Sole Flex Cracking | SATRA TM2 | 100,000 cycles 0mm cut |
| Outsole Slip Resistance | SATRA TM144 | CoF ≥ 0.75 Dry / 0.55 Wet |
| Steel Toe Impact | ISO 20345 / ASTM | 200 Joules Impact (Pass) |
| Midsole Puncture | EN 12568 | ≥ 1,150 N (Req. 1,100 N) |
| Metal & Needle Safety | In-line Conveyor | 100% 1.0mm Fe detection |
8-Gate Quality Assurance & AQL 0.65 Standard
Every production run undergoes strict military-grade gate inspections from raw materials to container loading.
Inbound Material Check
Tensile strength, hydrostatic head, rub fastness, and batch color matching (ΔE ≤ 0.8).

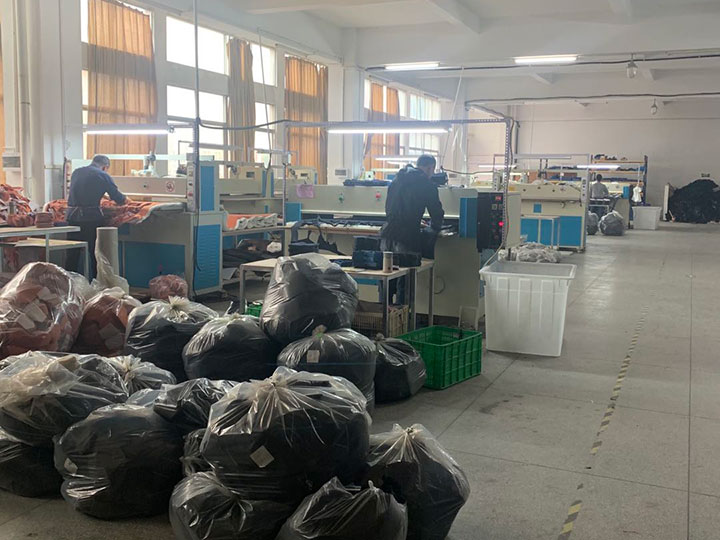

Cutting & Skiving Check
Grain direction inspection, edge beveling precision, and thickness grading.
Seam Taping Verification
Hot-air tape adhesion on waterproof booties; 100% pneumatic air pressure testing.
Patent Water Immersion
Proprietary dynamic flexing in water rig. Zero tolerance for moisture ingress.
Lasting & Bonding Audit
Adhesive halogenation temperature, sole cement coverage, and pneumatic press pressure.
Cold Flex & Aging Rig
-30°C freezer chamber flex endurance and accelerated heat aging tests.
Needle & Metal Detection
100% of finished shoes pass through high-sensitivity 1.0mm ferrous detector conveyor.
Pre-Shipment AQL 0.65
Carton drop test, desiccant placement, barcode scanning, and dual-witness container loading.
| Quality Gate | Inspection Focus | Mandatory Testing Benchmark & Tolerance | International Standard |
|---|---|---|---|
| Gate 1: Inbound Raw Materials | Leather tensile, tear strength, hydrostatic head, rub fastness | ΔE ≤ 0.8 color matching; Hydrostatic head ≥15,000 mm H₂O | ISO 811 / SATRA TM25 |
| Gate 2: Cutting & Skiving | Grain orientation, edge beveling angle, thickness calibration | ±0.3 mm digital micrometer tolerance; zero grain flaws | Internal SOP QG-02 |
| Gate 3: Seam Waterproof Taping | Twin-needle hot-air tape seal on waterproof booties | 100% Bootie inspection with 0.03 MPa pneumatic bubble test | SATRA TM77 Pneumatic |
| Gate 4: Dynamic Water Submersion | Proprietary dynamic mechanical flex underwater test rig | 25,000 to 50,000 continuous water flexes with zero moisture ingress | CNIPA ZL201920812345.X |
| Gate 5: Lasting & Sole Bonding | Halogenation temperature, adhesive coverage, pneumatic dwell | Upper-to-sole bonding strength ≥4.8 N/mm (vs 4.0 standard) | SATRA TM4 / ISO 17708 |
| Gate 6: Cold Flex & Thermal Aging | -30°C Cryogenic freezer chamber flexing & thermal oven aging | Zero sole cracking or rubber embrittlement after 50,000 cold flexes | SATRA TM2 / ISO 20344 |
| Gate 7: Ferrous Metal Detection | Dual-head conveyor metal detector for broken needles | 100% of finished pairs pass through 1.0mm ferrous test ring | EN 71-1 / ASTM F963 |
| Gate 8: Pre-Shipment Audit | AQL 0.65 Level II pre-shipment lot sampling prior to container pack | Zero critical defects, barcode scan verification, drop-test box integrity | MIL-STD-105E / ISO 2859 |
Traditional shoe factories test only the waterproof membrane before cutting. But cutting, stitching, and lasting introduce microscopic perforations that raw swatches cannot predict. Under our CNIPA Patent ZL201920812345.X, we subject 100% of finished boot booties to pneumatic leak checks, followed by continuous underwater mechanical flexing for 25,000 to 50,000 cycles. We also maintain SATRA TM4 sole bonding adhesion above 4.8 N/mm to eliminate delamination in extreme cold climates.
